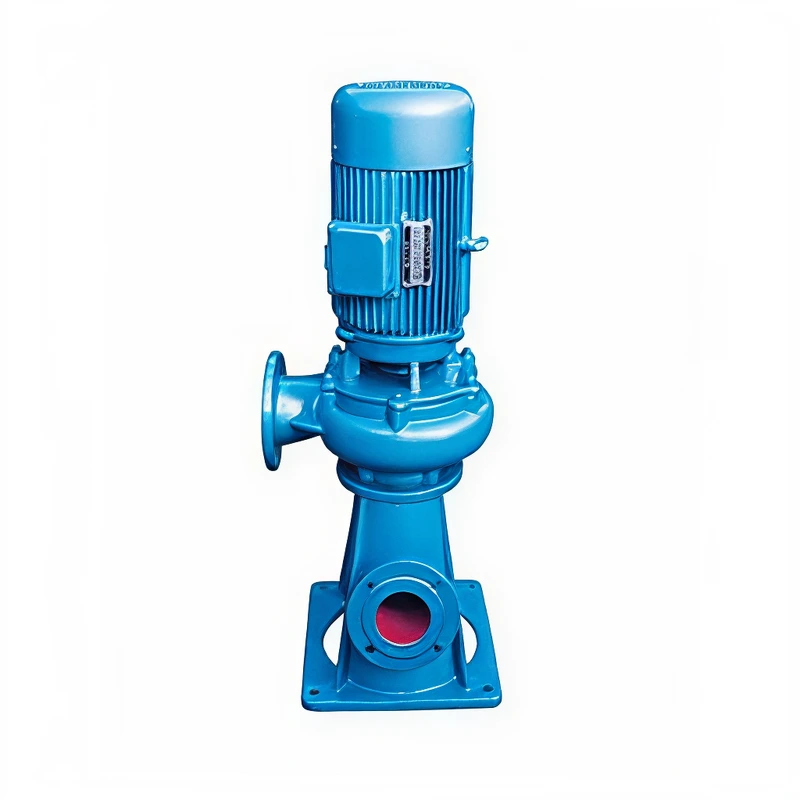

Vertical Surface Sewage Pump LW no need for a pump house
Product Introduction
Vertical Surface Sewage Pump are vertical, non-clogging sewage pumps designed for wastewater discharge systems. They are clog-free, anti-winding, and have excellent particle throughput.
Single (double) flow impellers can be used, providing strong sewage discharge capacity, preventing clogging, and allowing solids to pass through up to 60% of the pump's diameter.
The tearing and shredding mechanism effectively tears and cuts fibrous materials for smooth discharge, eliminating the need for a filter screen on the pump.
A titanium alloy mechanical seal allows the pump to operate for up to 8000 hours.
Compact structure, easy to move, simple installation, no need for a pump house, reducing project costs.
A new hydraulic model is used, resulting in a low-power motor.
An automatic water level control system automatically controls the pump's start and stop, requiring no dedicated personnel and reducing management costs.
LW and WL type sewage pumps can be connected by direct coupling or coupling. LW has horizontal suction at the inlet and has a turning function. It can be equipped with 0°, 90°, 180° and 270° according to user needs to facilitate pipeline connection. WL has axial suction at the inlet and is installed vertically.
product Parameters
| Model Specifications | Power | Model Specifications | Power |
| 25GW7-18=0.75 | 0.75kw-2 | 25LW7-18=0.75 | 0.75kw-2 |
| 25GW8-22=1.1 | 1.1kw-2 | 25LW8-22=1.1 | 1.1kw-2 |
| 32GW12-15=1.1 | 1.1kw-2 | 32LW12-15=1.1 | 1.1kw-2 |
| 40GW10-10=0.75 | 0.75kw-2 | 40LW10-10=0.75 | 0.75kw-2 |
| 40GW10-15=1.1 | 1.1kw-2 | 40LW10-15=1.1 | 1.1kw-2 |
| 40GW15-15=1.5 | 1.5kw-2 | 40LW15-15=1.5 | 1.5kw-2 |
| 40GW15-30=2.2 | 2.2kw-2 | 40LW15-25=2.2 | 2.2kw-2 |
| 50GW20-7=0.75 | 0.75kw-2 | 50LW20-7=0.75 | 0.75kw-2 |
| 50GW10-10=0.75 | 0.75kw-2 | 50LW10-10=0.75 | 0.75kw-2 |
| 50GW20-10=1.1 | 1.1kw-2 | 50LW20-10=1.1 | 1.1kw-2 |
| 50GW10-15=1.1 | 1.1kw-2 | 50LW10-15=1.1 | 1.1kw-2 |
| 50GW15-15=1.5 | 1.5kw-2 | 50LW15-15=1.5 | 1.5kw-2 |
| 50GW20-15=1.5 | 1.5kw-2 | 50LW20-15=1.5 | 1.5kw-2 |
| 50GW10-20=1.5 | 1.5kw-2 | 50LW10-20=1.5 | 1.5kw-2 |
| 50GW25-15=2.2 | 2.2kw-2 | 50LW25-15=2.2 | 2.2kw-2 |
| 50GW15-20=2.2 | 2.2kw-2 | 50LW15-20=2.2 | 2.2kw-2 |
| 50GW15-25=2.2 | 2.2kw-2 | 50LW15-25=2.2 | 2.2kw-2 |
| 50GW30-18=3 | 3kw-2 | 50LW30-18=3 | 3kw-2 |
| 50GW25-20=3 | 3kw-2 | 50LW25-20=3 | 3kw-2 |
| 50GW15-30=3 | 3kw-2 | 50LW15-30=3 | 3kw-2 |
| 50GW18-30=3 | 3kw-2 | 50LW18-30=3 | 3kw-2 |
| 50GW10-32=3 | 3kw-2 | 50LW10-32=3 | 3kw-2 |
| 50GW25-25=4 | 4kw-2 | 50LW25-25=4 | 4kw-2 |
| 50GW15-32=4 | 4kw-2 | 50LW15-32=4 | 4kw-2 |
| 50GW15-35=4 | 4kw-2 | 50LW15-35=4 | 4kw-2 |
| 50GW30-30=5.5 | 5.5kw-2 | 50LW30-30=5.5 | 5.5kw-2 |
| 50GW25-32=5.5 | 5.5kw-2 | 50LW25-32=5.5 | 5.5kw-2 |
| 50GW15-40=5.5 | 5.5kw-2 | 50LW15-40=5.5 | 5.5kw-2 |
| 50GW25-35=7.5 | 7.5kw-2 | 50LW25-35=7.5 | 7.5kw-2 |
| 50GW20-40=7.5 | 7.5kw-2 | 50LW20-40=7.5 | 7.5kw-2 |
| 50GW30-40=7.5 | 7.5kw-2 | 50LW30-40=7.5 | 7.5kw-2 |
| 50GW18-45=7.5 | 7.5kw-2 | 50LW18-45=7.5 | 7.5kw-2 |
| 65GW35-5=1.5 | 1.5kw-2 | 65LW35-5=1.5 | 1.5kw-2 |
| 65GW25-10=1.5 | 1.5kw-2 | 65LW25-10=1.5 | 1.5kw-2 |
| 65GW35-7=2.2 | 2.2kw-2 | 65LW35-7=2.2 | 2.2kw-2 |
| 65GW35-10=2.2 | 2.2kw-2 | 65LW35-10=2.2 | 2.2kw-2 |
| 65GW25-15=2.2 | 2.2kw-2 | 65LW25-15=2.2 | 2.2kw-2 |
| 65GW37-13=3 | 3kw-2 | 65LW37-13=3 | 3kw-2 |
| 65GW30-18=3 | 3kw-2 | 65LW30-18=3 | 3kw-2 |
| 65GW20-25=3 | 3kw-2 | 65LW20-25=3 | 3kw-2 |
| 65GW25-30=4 | 4kw-2 | 65LW25-30=4 | 4kw-2 |
| 65GW30-30=5.5 | 5.5kw-2 | 65LW30-30=5.5 | 5.5kw-2 |
| 65GW30-40=7.5 | 7.5kw-2 | 65LW30-40=7.5 | 7.5kw-2 |
| 65GW30-50=11 | 11kw-2 | 65LW30-50=11 | 11kw-2 |
| 65GW30-60=15 | 15kw-2 | 65LW30-60=15 | 15kw-2 |
| 80GW40-7=2.2 | 2.2kw-2 | 80LW40-7=2.2 | 2.2kw-2 |
| 80GW60-9=2.2 | 2.2kw-4 | 80LW60-9=2.2 | 2.2kw-4 |
| 80GW50-10=3 | 3kw-2 | 80LW50-10=3 | 3kw-2 |
| 80GW43-13=3 | 3kw-2 | 80LW43-13=3 | 3kw-2 |
| 80GW40-15=4 | 4kw-2 | 80LW40-15=4 | 4kw-2 |
| 80GW50-20=5.5 | 5.5kw-2 | 80LW50-20=5.5 | 5.5kw-2 |
| 80GW65-25=7.5 | 7.5kw-2 | 80LW65-25=7.5 | 7.5kw-2 |
| 80GW40-32=7.5 | 7.5kw-2 | 80LW40-32=7.5 | 7.5kw-2 |
| 80GW40-40=11 | 11kw-2 | 80LW40-40=11 | 11kw-2 |
| 80GW40-50=15 | 15kw-2 | 80LW40-50=15 | 15kw-2 |
| 80GW50-50=18.5 | 18.5kw-2 | 80LW50-50=18.5 | 18.5kw-2 |
| 80GW50-60=22 | 22kw-2 | 80LW50-60=22 | 22kw-2 |
| 100GW50-10=3 | 3kw-2 | 100LW50-10=3 | 3kw-2 |
| 100GW60-12=4 | 4kw-2 | 100LW60-12=4 | 4kw-2 |
| 100GW65-20=5.5 | 5.5kw-2 | 100LW65-20=5.5 | 5.5kw-2 |
| 100GW65-25=7.5 | 7.5kw-2 | 100LW65-25=7.5 | 7.5kw-2 |
| 100GW80-10=4 | 4kw-4 | 100LW80-10=4 | 4kw-4 |
| 100GW110-10=5.5 | 5.5kw-4 | 100LW110-10=5.5 | 5.5kw-4 |
| 100GW100-15=7.5 | 7.5kw-4 | 100LW100-15=7.5 | 7.5kw-4 |
| 100GW80-20=7.5 | 7.5kw-4 | 100LW80-20=7.5 | 7.5kw-4 |
| 100GW100-25=11 | 11kw-4 | 100LW100-25=11 | 11kw-4 |
| 100GW100-30=15 | 15kw-4 | 100LW100-30=15 | 15kw-4 |
| 100GW100-35=18.5 | 18.5kw-4 | 100LW100-35=18.5 | 18.5kw-4 |
| 100GW100-40=22 | 22kw-4 | 100LW100-40=22 | 22kw-4 |
| 100GW120-45=30 | 30kw-4 | 100LW120-45=30 | 30kw-4 |
| 100GW120-50=37 | 37kw-4 | 100LW120-50=37 | 37kw-4 |
| 125GW120-9=5.5 | 5.5kw-4 | 125LW120-9=5.5 | 5.5kw-4 |
| 125GW120-12=7.5 | 7.5kw-4 | 125LW120-12=7.5 | 7.5kw-4 |
| 125GW130-15=11 | 11kw-4 | 125LW130-15=11 | 11kw-4 |
| 125GW130-20=15 | 15kw-4 | 125LW130-20=15 | 15kw-4 |
| 150GW130-7=5.5 | 5.5kw-4 | 150LW130-7=5.5 | 5.5kw-4 |
| 150GW145-9=7.5 | 7.5kw-4 | 150LW145-9=7.5 | 7.5kw-4 |
| 150GW120-12=7.5 | 7.5kw-4 | 150LW120-12=7.5 | 7.5kw-4 |
| 150GW180-11=11 | 11kw-4 | 150LW180-11=11 | 11kw-4 |
| 150GW130-15=11 | 11kw-4 | 150LW130-15=11 | 11kw-4 |
| 150GW180-15=15 | 15kw-4 | 150LW180-15=15 | 15kw-4 |
| 150GW130-20=15 | 15kw-4 | 150LW130-20=15 | 15kw-4 |
| 150GW180-20=18.5 | 18.5kw-4 | 150LW180-20=18.5 | 18.5kw-4 |
| 150GW130-25=18.5 | 18.5kw-4 | 150LW130-25=18.5 | 18.5kw-4 |
| 150GW180-25=22 | 22kw-4 | 150LW180-25=22 | 22kw-4 |
| 150GW130-30=22 | 22kw-4 | 150LW130-30=22 | 22kw-4 |
| 150GW180-30=30 | 30kw-4 | 150LW180-30=30 | 30kw-4 |
| 150GW150-35=30 | 30kw-4 | 150LW150-35=30 | 30kw-4 |
| 150GW200-35=37 | 37kw-4 | 150LW200-35=37 | 37kw-4 |
| 150GW180-37=37 | 37kw-4 | 150LW180-37=37 | 37kw-4 |
| 150GW180-45=45 | 45kw-4 | 150LW180-45=45 | 45kw-4 |
| 150GW200-50=55 | 55kw-4 | 150LW200-50=55 | 55kw-4 |
| 200GW200-5=5.5 | 5.5kw-4 | 200LW200-5=5.5 | 5.5kw-4 |
| 200GW250-6=7.5 | 7.5kw-4 | 200LW250-6=7.5 | 7.5kw-4 |
| 200GW300-7=11 | 11kw-4 | 200LW300-7=11 | 11kw-4 |
| 200GW270-10=15 | 15kw-4 | 200LW270-10=15 | 15kw-4 |
| 200GW300-10=15 | 15kw-4 | 200LW300-10=15 | 15kw-4 |
| 200GW250-11=15 | 15kw-4 | 200LW250-11=15 | 15kw-4 |
| 200GW350-10=18.5 | 18.5kw-4 | 200LW350-10=18.5 | 18.5kw-4 |
| 200GW250-15=18.5 | 18.5kw-4 | 200LW250-15=18.5 | 18.5kw-4 |
| 200GW400-10=22 | 22kw-4 | 200LW400-10=22 | 22kw-4 |
| 200GW300-15=22 | 22kw-4 | 200LW300-15=22 | 22kw-4 |
| 200GW200-20=22 | 22kw-4 | 200LW200-20=22 | 22kw-4 |
| 200GW400-13=30 | 30kw-4 | 200LW400-13=30 | 30kw-4 |
| 200GW300-20=30 | 30kw-4 | 200LW300-20=30 | 30kw-4 |
| 200GW250-22=30 | 30kw-4 | 200LW250-22=30 | 30kw-4 |
| 200GW400-20=37 | 37kw-4 | 200LW400-20=37 | 37kw-4 |
| 200GW350-25=37 | 37kw-4 | 200LW350-25=37 | 37kw-4 |
| 200GW300-28=37 | 37kw-4 | 200LW300-28=37 | 37kw-4 |
| 200GW250-30=37 | 37kw-4 | 200LW250-30=37 | 37kw-4 |
| 200GW400-25=45 | 45kw-4 | 200LW400-25=45 | 45kw-4 |
| 200GW380-28=45 | 45kw-4 | 200LW380-28=45 | 45kw-4 |
| 200GW300-32=45 | 45kw-4 | 200LW300-32=45 | 45kw-4 |
| 200GW250-35=45 | 45kw-4 | 200LW250-35=45 | 45kw-4 |
| 200GW400-30=55 | 55kw-4 | 200LW400-30=55 | 55kw-4 |
| 200GW400-35=75 | 75kw-4 | 200LW400-35=75 | 75kw-4 |
| 200GW350-40=75 | 75kw-4 | 200LW350-40=75 | 75kw-4 |
| 200GW420-40=90 | 90kw-4 | 200LW420-40=90 | 90kw-4 |
| 250GW400-5=11 | 11kw-4 | 250LW400-5=11 | 11kw-4 |
| 250GW500-5=15 | 15kw-4 | 250LW500-5=15 | 15kw-4 |
| 250GW500-6=18.5 | 18.5kw-4 | 250LW500-6=18.5 | 18.5kw-4 |
| 250GW500-8=22 | 22kw-4 | 250LW500-8=22 | 22kw-4 |
| 250GW600-9=30 | 30kw-4 | 250LW600-9=30 | 30kw-4 |
| 250GW500-10=30 | 30kw-4 | 250LW500-10=30 | 30kw-4 |
| 250GW600-12=37 | 37kw-4 | 250LW600-12=37 | 37kw-4 |
| 250GW600-15=45 | 45kw-4 | 250LW600-15=45 | 45kw-4 |
| 250GW600-20=55 | 55kw-4 | 250LW600-20=55 | 55kw-4 |
| 250GW600-25=75 | 75kw-4 | 250LW600-25=75 | 75kw-4 |
| 250GW600-30=90 | 90kw-4 | 250LW600-30=90 | 90kw-4 |
| 300GW650-5=18.5 | 18.5kw-4 | 300LW650-5=18.5 | 18.5kw-4 |
| 300GW650-7=22 | 22kw-4 | 300LW650-7=22 | 22kw-4 |
| 300GW850-7=30 | 30kw-4 | 300LW850-7=30 | 30kw-4 |
| 300GW800-9=37 | 37kw-4 | 300LW800-9=37 | 37kw-4 |
| 300GW800-12=45 | 45kw-4 | 300LW800-12=45 | 45kw-4 |
| 300GW800-15=55 | 55kw-4 | 300LW800-15=55 | 55kw-4 |
| 300GW800-20=75 | 75kw-4 | 300LW800-20=75 | 75kw-4 |
| 300GW800-25=90 | 90kw-4 | 300LW800-25=90 | 90kw-4 |
| 350GW1000-6=37 | 37kw-4 | 350LW1000-6=37 | 37kw-4 |
| 350GW1000-8=45 | 45kw-4 | 350LW1000-8=45 | 45kw-4 |
| 350GW1000-10=55 | 55kw-4 | 350LW1000-10=55 | 55kw-4 |
| 350GW1300-12=75 | 75kw-4 | 350LW1300-12=75 | 75kw-4 |
| 350GW1200-15=90 | 90kw-4 | 350LW1500-15=90 | 90kw-4 |
Application
Vertical Surface Sewage Pump LW is mainly used for wastewater discharge in cities, hospitals, hotels, and high-rise buildings; discharge of sludge from municipal engineering projects and construction sites; water supply equipment in waterworks; wastewater discharge from livestock farms; irrigation of rural farmland; and as a supporting component in mining exploration and water treatment equipment.
