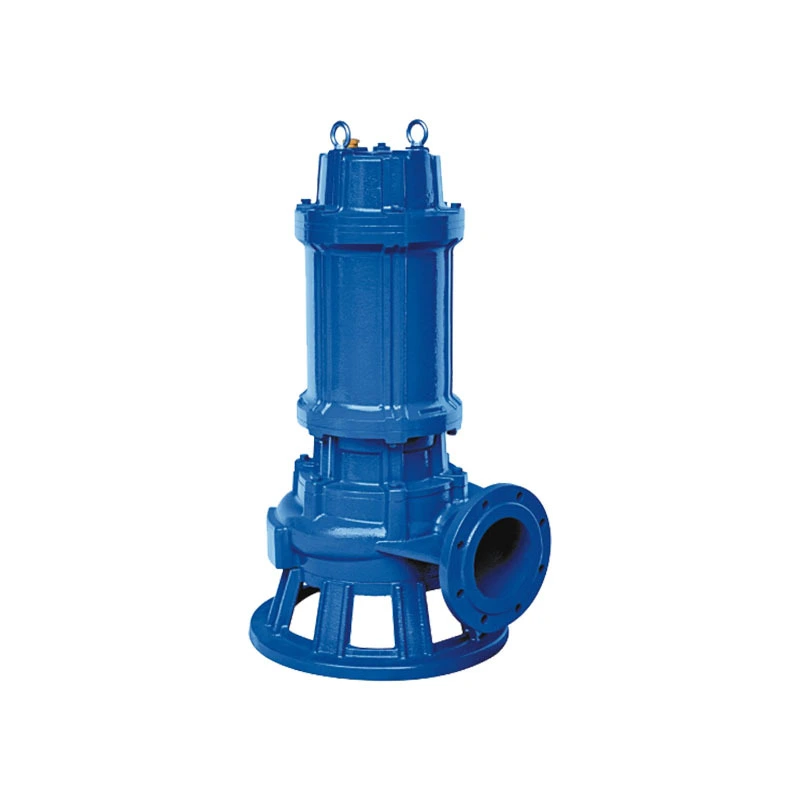

Submersible Sewage Pump for Wastewater Transfer
Product Overview
The Submersible Sewage Pump for Wastewater Transfer is designed for efficient and reliable handling of sewage, wastewater, sludge, and liquids containing solids or fibrous materials.
With an advanced hydraulic design and integrated submersible motor, the pump ensures stable performance, anti-clogging operation, and long service life in demanding environments. It is widely used in municipal sewage systems, industrial wastewater treatment, and drainage projects.
Key Features & Advantages
• Optimized hydraulic design ensures high efficiency and low energy consumption
• Stable flow performance for continuous wastewater transport
• Equipped with non-clog impeller (vortex, channel, or cutter optional)
• Capable of handling solids, sludge, and fibrous materials
• Reduces downtime caused by blockage
• Pump and motor integrated into a compact submersible unit
• No need for priming or additional suction systems
• Easy installation and space saving
• Double mechanical seal design with oil chamber protection
• Prevents water ingress and ensures motor safety
• Extends operational lifespan
• Durable Construction
product Parameters
| Model | Outlet diameter | Flow | Head | Power | |
| WQ type | mm | m³/h | m | kw | hp |
| 65WQ15-9-1.1 | 65 | 15 | 9 | 1.1 | 2 |
| 50WQ9-22-2.2 | 50 | 9 | 22 | 2.2 | 3 |
| 40WQ10-35-3 | 40 | 10 | 35 | 3 | 4 |
| 80WQ40-15-4 | 80 | 40 | 15 | 4 | 5 |
| 100WQ65-18-5.5 | 100 | 65 | 18 | 5.5 | 7 |
| 100WQ100-15-7.5 | 100 | 100 | 15 | 7.5 | 10 |
| 150WQ145-9-7.5 | 150 | 145 | 9 | 7.5 | 10 |
| 100WQ100-25-11 | 100 | 100 | 25 | 11 | 15 |
| 150WQ130-15-11 | 150 | 130 | 15 | 11 | 15 |
| 200WQ300-7-11 | 200 | 300 | 7 | 11 | 15 |
| 100WQ100-30-15 | 100 | 100 | 30 | 15 | 20 |
| 150WQ100-30-15 | 150 | 100 | 30 | 15 | 20 |
| 200WQ220-12-15 | 200 | 220 | 12 | 15 | 20 |
| 100WQ100-35-18.5 | 100 | 100 | 35 | 18.5 | 25 |
| 150WQ180-20-18.5 | 150 | 180 | 20 | 18.5 | 25 |
| 200WQ250-15-18.5 | 200 | 250 | 15 | 18.5 | 25 |
| 250WQ400-7-18.5 | 250 | 400 | 7 | 18.5 | 25 |
| 100WQ100-40-22 | 100 | 100 | 40 | 22 | 30 |
| 150WQ180-25-22 | 150 | 180 | 25 | 22 | 30 |
| 200WQ300-15-22 | 200 | 300 | 15 | 22 | 30 |
| 250WQ450-7-22 | 250 | 450 | 7 | 22 | 30 |
| 150WQ227-27-30 | 150 | 227 | 27 | 30 | 40 |
| 150WQ160-45-30 | 150 | 160 | 45 | 30 | 40 |
| 200WQ400-13-30 | 200 | 400 | 13 | 30 | 40 |
| 250WQ600-9-30 | 250 | 600 | 9 | 30 | 40 |
| 300WQ850-7-30 | 300 | 850 | 7 | 30 | 40 |
| 150WQ200-30-37 | 150 | 200 | 30 | 37 | 50 |
| 200WQ350-25-37 | 200 | 350 | 25 | 37 | 50 |
| 250WQ600-12-37 | 250 | 600 | 12 | 37 | 50 |
| 300WQ800-10-37 | 300 | 800 | 10 | 37 | 50 |
| 350WQ1000-8-37 | 350 | 1000 | 8 | 37 | 50 |
| 150WQ180-45-45 | 150 | 180 | 45 | 45 | 60 |
| 200WQ400-25-45 | 200 | 400 | 25 | 45 | 60 |
| 300WQ800-12-45 | 300 | 800 | 12 | 45 | 60 |
| 350WQ1200-8-45 | 350 | 1200 | 8 | 45 | 60 |
| 200WQ400-30-55 | 200 | 400 | 30 | 55 | 75 |
| 250WQ600-20-55 | 250 | 600 | 20 | 55 | 75 |
| 300WQ800-15-55 | 300 | 800 | 12 | 55 | 75 |
| 350WQ1100-10-55 | 350 | 1100 | 10 | 55 | 75 |
| 250WQ600-25-75 | 350 | 600 | 25 | 75 | 100 |
| 300WQ800-20-75 | 300 | 800 | 20 | 75 | 100 |
| 350WQ1300-12-75 | 350 | 1300 | 12 | 75 | 100 |
Advantages
Structural Advantages
- Compact design for easy installation in confined spaces
- Supports auto-coupling systems for quick maintenance
- Designed for continuous submerged operation
- Efficient motor cooling through surrounding liquid
Product Advantages
High efficiency and energy saving; Excellent anti-clogging performance;Reliable operation in harsh conditions; Low maintenance requirements; Long service life
Application
