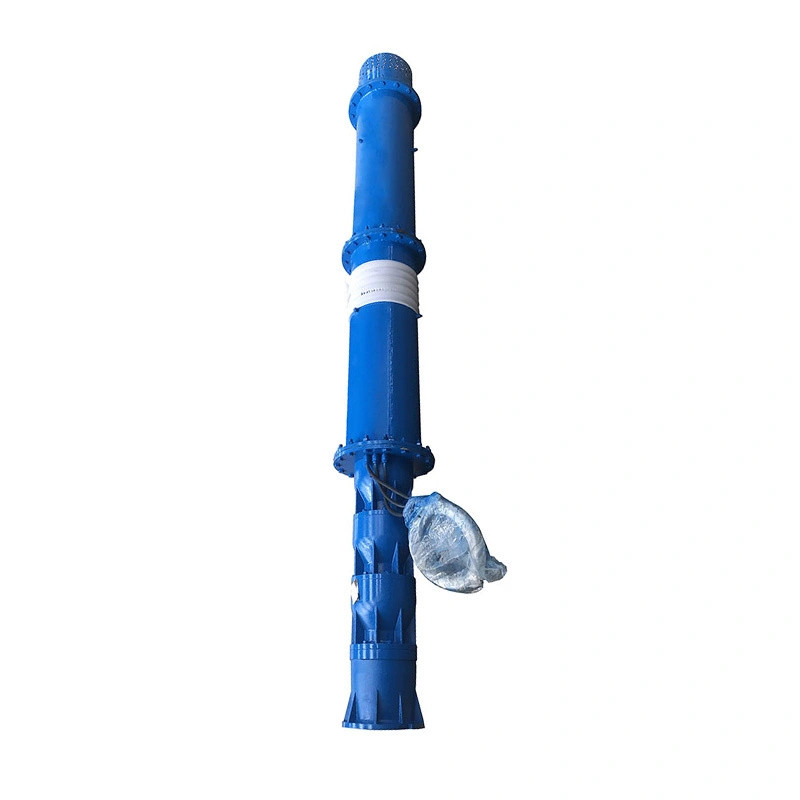

Mining Submersible Pump for Mine Drainag High Safety & Reliability
Product Overview
The Mining Submersible Pump is a high-performance drainage solution specifically designed for harsh mining environments. It is widely used in mine production drainage, emergency water inrush rescue, and mine recovery drainage, ensuring safe and efficient water management in underground and open-pit operations.
Manufactured by Shenlong Pump Industry (SLAPK), this series offers a wide performance range with flow rates from 100 to 2000 m³/h, head up to 1800 meters, and motor power up to 4200 kW, making it suitable for large-scale industrial applications.
Application
Mine submersible pump is widely suitable for the extraction of groundwater from deep well, mine, can be used for gold, silver, iron ore, coal mine rescue, site drainage.
Key Features & Advantages
• Stable performance in complex mining environments
• Strong resistance to corrosion and abrasion
• Optimized hydraulic design for maximum efficiency
• Reduced energy consumption in continuous operation
• Advanced motor cooling system ensures long service life
• Equipped with multiple protection systems
• Supports remote monitoring and control
• Enables intelligent management and fault detection
• Can be installed vertically, horizontally, or inclined
• Suitable for different mining layouts
• Easy installation and maintenance
• For motors ≤600kW: spiral groove cooling design
• Ensures stable operation under high load conditions
product Parameters
| Flow range | Head range | Motor Power | |
| m3/h | m | kw | hp |
| 18-22 | 115-156 | 15 | 20 |
| 18-22 | 138-187 | 18.5 | 25 |
| 18-22 | 172-232 | 22 | 30 |
| 18-22 | 240-325 | 30 | 40 |
| 18-22 | 252-341 | 37 | 50 |
| 18-22 | 345-465 | 45 | 60 |
| 29-35 | 166-225 | 30 | 40 |
| 29-35 | 177-240 | 37 | 50 |
| 29-35 | 245-330 | 45 | 60 |
| 37-43 | 89-124 | 18.5 | 25 |
| 37-43 | 94-140 | 22 | 30 |
| 37-43 | 206-277 | 45 | 60 |
| 46-54 | 136-184 | 37 | 50 |
| 46-54 | 265-335 | 63 | 85 |
| 46-54 | 272-368 | 75 | 100 |
| 46-54 | 330-390 | 90 | 120 |
| 74-86 | 68-92 | 30 | 40 |
| 74-86 | 85-115 | 37 | 50 |
| 74-86 | 102-138 | 45 | 60 |
| 74-86 | 235-325 | 110 | 150 |
| 80-120 | 120-168 | 63 | 85 |
| 80-120 | 140-189 | 75 | 100 |
| 80-120 | 170-231 | 90 | 120 |
| 80-120 | 190-252 | 100 | 135 |
| 116-134 | 13-19 | 9.2 | 13 |
| 116-134 | 124-164 | 90 | 120 |
| 116-134 | 163-220 | 110 | 150 |
| 130-150 | 13-17 | 9.2 | 13 |
| 130-145 | 17-26 | 13 | 18 |
| 130-150 | 26-34 | 18.5 | 25 |
| 143-188 | 158-162 | 110 | 150 |
| 130-145 | 156-205 | 125 | 170 |
| 148-172 | 52-69 | 45 | 60 |
| 148-172 | 65-86 | 55 | 75 |
| 148-172 | 90-120 | 75 | 100 |
| 148-172 | 102-138 | 90 | 120 |
| 186-214 | 68-92 | 75 | 100 |
| 186-214 | 85-115 | 90 | 120 |
| 186-214 | 100-138 | 110 | 150 |
| 223-257 | 18-25 | 22 | 30 |
| 223-257 | 37-51 | 45 | 60 |
| 223-257 | 56-76 | 75 | 100 |
| 223-257 | 75-101 | 100 | 135 |
| 279-321 | 35-45 | 55 | 75 |
| 279-321 | 51-69 | 75 | 100 |
| 279-321 | 68-92 | 110 | 150 |
| 368-432 | 38-42 | 75 | 100 |
| 368-432 | 76-84 | 160 | 220 |
| 368-432 | 117-123 | 220 | 300 |
| 460-540 | 14-16 | 30 | 40 |
| 460-540 | 29-32 | 75 | 100 |
| 460-540 | 43-47 | 110 | 150 |
| 460-540 | 57-63 | 140 | 190 |
| 460-540 | 72-78 | 185 | 250 |
| 460-540 | 87-93 | 220 | 300 |
| 900-1200 | 12-20 | 90 | 120 |
| 600-680 | 82-86 | 260 | 350 |
| 900-1200 | 58-62 | 300 | 400 |
Working Conditions
• The pump must be fully submerged during operation
• Minimum water level: 2 meters above pump inlet
• Motor cooling water velocity ≥ 0.5 m/s
• Suitable for clean water or water containing small solid particles
For seawater applications:
• Anti-corrosion coating applied to motor housing
• Continuous operation up to 3 months
• Requires inspection and maintenance after use
Installation & Operation Notes
• The motor must be filled with clean water before operation
• Read the installation manual carefully before use
• Ensure sufficient water flow for motor cooling
• Proper grounding is required for non-well applications
• Dry running is strictly prohibited
• During ground testing, the pump must be filled with water or lubricating liquid
