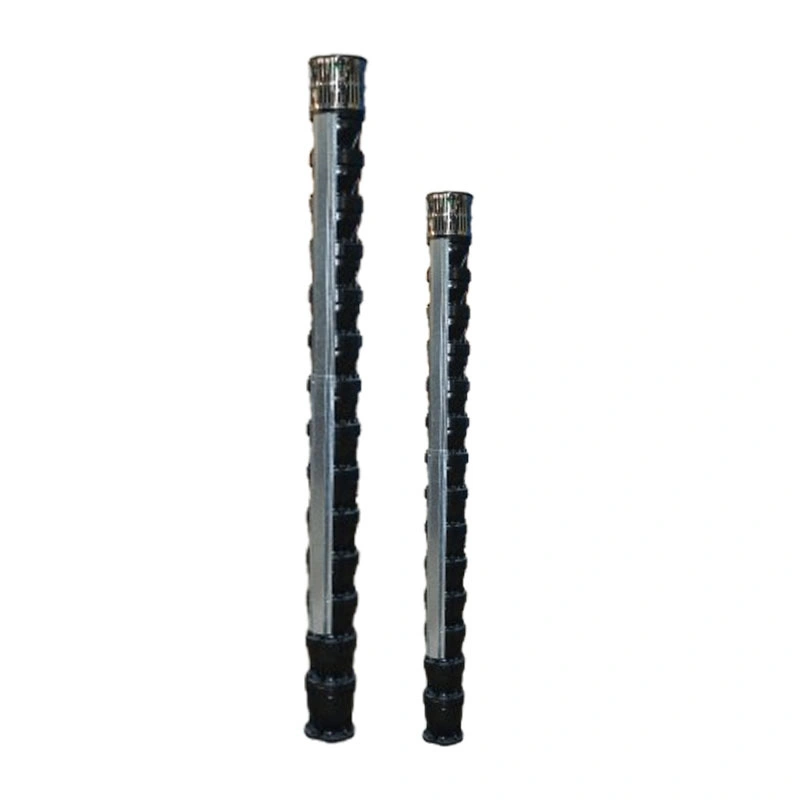

High Temperature Submersible Pump for industrial processes
product Introduction
The High Temperature Submersible Pump is specifically engineered for hot water transfer applications up to 120°C, making it suitable for industrial processes, geothermal water handling, and high-temperature fluid circulation.
This pump integrates heat-resistant materials and specialized components, ensuring long-term stability, safety, and efficiency under elevated temperature conditions.
Technical Advantages
• Designed for extreme temperature conditions up to 120°C
• Excellent thermal stability and durability
• Reduced risk of seal failure and motor overheating
• Suitable for continuous operation in demanding environments
• Low maintenance with high operational reliability
Typical Applications
The pump is designed with a fully integrated submersible structure, including:
• High temperature motor system
• Thermal-resistant cable entry system
• Multi-layer sealing protection
• Durable pump casting components
• All wetted and sealing parts are selected to ensure maximum resistance to heat, wear, and corrosion.
product Parameters
| Model | Power | Flow rate | Head meters | |
| QJR type | kw | hp | m³/h | m |
| 200QJR20-135/10 | 15 | 20 | 20 | 135 |
| 200QJR20-175/13 | 18.5 | 25 | 20 | 175 |
| 200QJR20-202/15 | 22 | 30 | 20 | 202 |
| 200QJR20-283/21 | 30 | 40 | 20 | 283 |
| 200QJR20-338/25 | 37 | 50 | 20 | 338 |
| 200QJR25-182/13 | 22 | 30 | 25 | 182 |
| 200QJR25-294/21 | 37 | 50 | 25 | 294 |
| 200QJR32-104/8 | 18.5 | 25 | 32 | 104 |
| 200QJR32-144/9 | 22 | 30 | 32 | 144 |
| 200QJR32-195/15 | 30 | 40 | 32 | 195 |
| 200QJR32-234/18 | 37 | 50 | 32 | 234 |
| 200QJR40-117/9 | 22 | 30 | 40 | 117 |
| 200QJR40-208/16 | 37 | 50 | 40 | 208 |
| 200QJR50-78/6 | 18.5 | 25 | 50 | 78 |
| 200QJR50-91/7 | 22 | 30 | 50 | 91 |
| 200QJR63-112/8 | 30 | 40 | 63 | 112 |
| 200QJR80-44/4 | 15 | 20 | 80 | 44 |
| 200QJR80-88/8 | 30 | 40 | 80 | 88 |
| 200QJR100-75/5 | 37 | 50 | 100 | 75 |
| 250QJR50-80/4 | 18.5 | 25 | 50 | 80 |
| 250QJR50-340/17 | 75 | 100 | 50 | 340 |
| 250QJR63-60/3 | 18.5 | 25 | 63 | 60 |
| 250QJR63-100/5 | 30 | 40 | 63 | 100 |
| 250QJR63-260/13 | 75 | 100 | 63 | 260 |
| 250QJR100-72/4 | 30 | 40 | 100 | 72 |
| 250QJR125-128/8 | 75 | 100 | 125 | 128 |
| 250QJR160-105/7 | 75 | 100 | 160 | 105 |
| 300QJR200-20/1 | 18.5 | 25 | 200 | 20 |
| 300QJR240-22/1 | 22 | 30 | 240 | 22 |
| 300QJR300-20/1 | 25 | 35 | 300 | 20 |
| 300QJR300-40/2 | 55 | 75 | 300 | 40 |
| 300QJR300-60/3 | 75 | 100 | 300 | 60 |
| 300QJR300-80/4 | 110 | 150 | 300 | 80 |
| 300QJR300-100/5 | 140 | 190 | 300 | 100 |
| 300QJR300-120/6 | 160 | 220 | 300 | 120 |
| 300QJR300-140/7 | 185 | 250 | 300 | 140 |
| 300QJR300-160/8 | 220 | 300 | 300 | 160 |
| 350QJR320-40/2 | 63 | 85 | 320 | 40 |
| 350QJR320-90/3 | 140 | 190 | 320 | 90 |
| 350QJR320-120/4 | 185 | 250 | 320 | 120 |
| 400QJR400-50/1 | 90 | 120 | 400 | 50 |
| 450QJR500-80/2 | 185 | 250 | 500 | 80 |
| 450QJR800-16/1 | 75 | 100 | 800 | 16 |
| 450QJR1000-16/1 | 90 | 120 | 1000 | 16 |
| 500QJR640-56/2 | 185 | 250 | 640 | 56 |
| 550QJR1200-18/1 | 110 | 150 | 1200 | 18 |
| 600QJR800-50/2 | 220 | 300 | 800 | 50 |
| 600QJR800-75/3 | 300 | 400 | 800 | 75 |
| 600QJR1000-20/1 | 110 | 150 | 1000 | 20 |
| 600QJR1000-40/2 | 220 | 300 | 1000 | 40 |
| 600QJR1000-60/3 | 300 | 400 | 1000 | 60 |
Application
