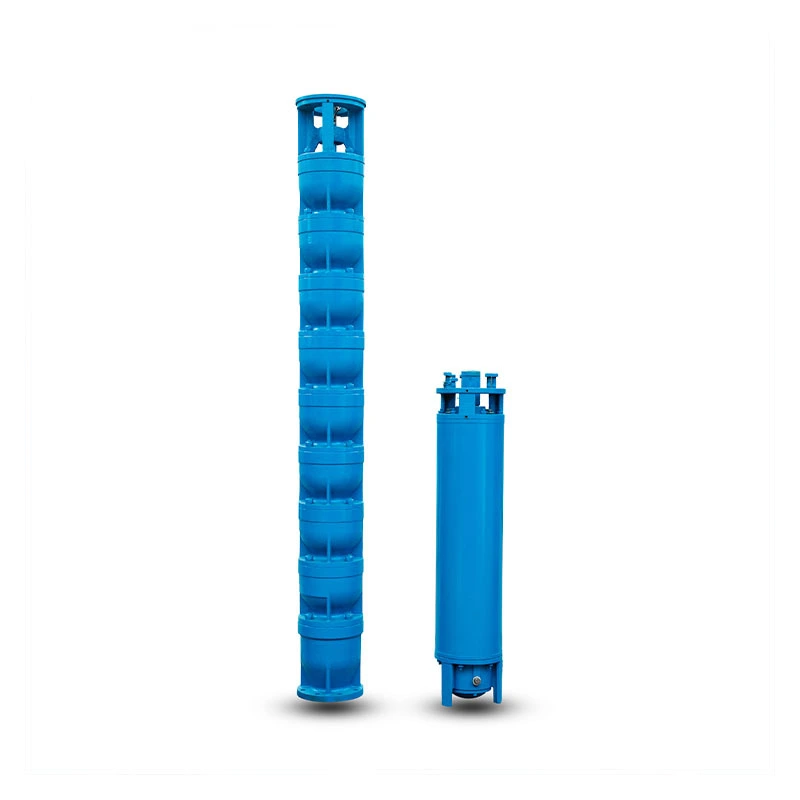

Submersible well pump for submersible work QJ type
product Introduction
Submersible well pump is an efficient and energy-saving water lifting tool for submersible work. The motor is filled with clean water to cool the motor and lubricate the bearings. Polyethylene insulated nylon sheath is used in motor winding, water-resistant electromagnetic wire is used, sand-throwing ring and skeleton oil seal are used in the upper part of the motor to seal, so as to prevent leakage of internal and external media of the motor. The water pump is a vertical single-stage, multi-stage centrifugal closed impeller, and the guide shell conveys liquid.
We test each submersible water pump before delivery, such as dynamic and static balance testing, material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not. Also we could send testing video, testing pictures, testing report.
product Parameters
| Pump Diameter | Model | Power | Flow | Head | Outlet Size | ||
| Inch(“) | QJ type | kw | hp | m³/h | m | Inch(“) | |
| 8″ | 200QJ20-135/10 | 15 | 20 | 20 | 135 | 2″ | |
| 8″ | 200QJ20-175/13 | 18.5 | 25 | 20 | 175 | 2″ | |
| 8″ | 200QJ20-202/15 | 22 | 30 | 20 | 202 | 2″ | |
| 8″ | 200QJ20-283/21 | 30 | 40 | 20 | 283 | 2″ | |
| 8″ | 200QJ20-338/25 | 37 | 50 | 20 | 338 | 2″ | |
| 8″ | 200QJ25-126/9 | 15 | 20 | 25 | 126 | 2″ | |
| 8″ | 200QJ25-182/13 | 22 | 30 | 25 | 182 | 2″ | |
| 8″ | 200QJ25-294/21 | 37 | 50 | 25 | 294 | 2″ | |
| 8″ | 200QJ32-104/8 | 18.5 | 25 | 32 | 104 | 3″ | |
| 8″ | 200QJ32-144/9 | 22 | 30 | 32 | 144 | 3″ | |
| 8″ | 200QJ32-195/15 | 30 | 40 | 32 | 195 | 3″ | |
| 8″ | 200QJ32-234/18 | 37 | 50 | 32 | 234 | 3″ | |
| 8″ | 200QJ40-78/6 | 15 | 20 | 40 | 78 | 3″ | |
| 8″ | 200QJ40-117/9 | 22 | 30 | 40 | 117 | 3″ | |
| 8″ | 200QJ40-208/16 | 37 | 50 | 40 | 208 | 3″ | |
| 8″ | 200QJ50-78/6 | 18.5 | 25 | 50 | 78 | 3″ | |
| 8″ | 200QJ50-91/7 | 22 | 30 | 50 | 91 | 3″ | |
| 8″ | 200QJ63-112/8 | 30 | 40 | 63 | 112 | 3″ | |
| 8″ | 200QJ80-44/4 | 15 | 20 | 80 | 44 | 4″ | |
| 8″ | 200QJ80-88/8 | 30 | 40 | 80 | 88 | 4″ | |
| 8″ | 200QJ100-75/5 | 37 | 50 | 100 | 75 | 4″ | |
| 10″ | 250QJ50-80/4 | 18.5 | 25 | 50 | 80 | 3″ | |
| 10″ | 250QJ50-340/17 | 75 | 100 | 50 | 340 | 3″ | |
| 10″ | 250QJ63-60/3 | 18.5 | 25 | 63 | 60 | 3″ | |
| 10″ | 250QJ63-100/5 | 30 | 40 | 63 | 100 | 3″ | |
| 10″ | 250QJ63-260/13 | 75 | 100 | 63 | 260 | 3″ | |
| 10″ | 250QJ100-72/4 | 30 | 40 | 100 | 72 | 4″ | |
| 10″ | 250QJ125-32/2 | 18.5 | 25 | 125 | 32 | 5″ | |
| 10″ | 250QJ125-128/8 | 75 | 100 | 125 | 128 | 5″ | |
| 10″ | 250QJ160-105/7 | 75 | 100 | 160 | 105 | 5″ | |
| 12″ | 300QJ200-20/1 | 18.5 | 25 | 200 | 20 | 6″ | |
| 12″ | 300QJ240-22/1 | 22 | 30 | 240 | 22 | 6″ | |
| 12″ | 300QJ300-20/1 | 25 | 35 | 300 | 20 | 6″ | |
| 12″ | 300QJ300-40/2 | 55 | 75 | 300 | 40 | 6″ | |
| 12″ | 300QJ300-60/3 | 75 | 100 | 300 | 60 | 6″ | |
| 12″ | 300QJ300-80/4 | 110 | 150 | 300 | 80 | 6″ | |
| 12″ | 300QJ300-100/5 | 140 | 190 | 300 | 100 | 6″ | |
| 12″ | 300QJ300-120/6 | 160 | 220 | 300 | 120 | 6″ | |
| 12″ | 300QJ300-140/7 | 185 | 250 | 300 | 140 | 6″ | |
| 12″ | 300QJ300-160/8 | 220 | 300 | 300 | 160 | 6″ | |
| 14″ | 350QJ250-50/2 | 63 | 85 | 250 | 50 | 6″ | |
| 14″ | 350QJ250-100/4 | 125 | 170 | 250 | 100 | 6″ | |
| 14″ | 350QJ320-30/1 | 45 | 60 | 320 | 30 | 8″ | |
| 16″ | 400QJ400-50/1 | 90 | 120 | 400 | 50 | 8″ | |
| 18″ | 450QJ800-16/1 | 75 | 100 | 800 | 16 | 12″ | |
| 18″ | 450QJ1000-16/1 | 90 | 120 | 1000 | 16 | 12″ | |
| 24″ | 600QJ800-50/2 | 220 | 300 | 800 | 50 | 12″ | |
| 24″ | 600QJ1000-60/3 | 300 | 400 | 1000 | 60 | 12″ | |
product Parameters
