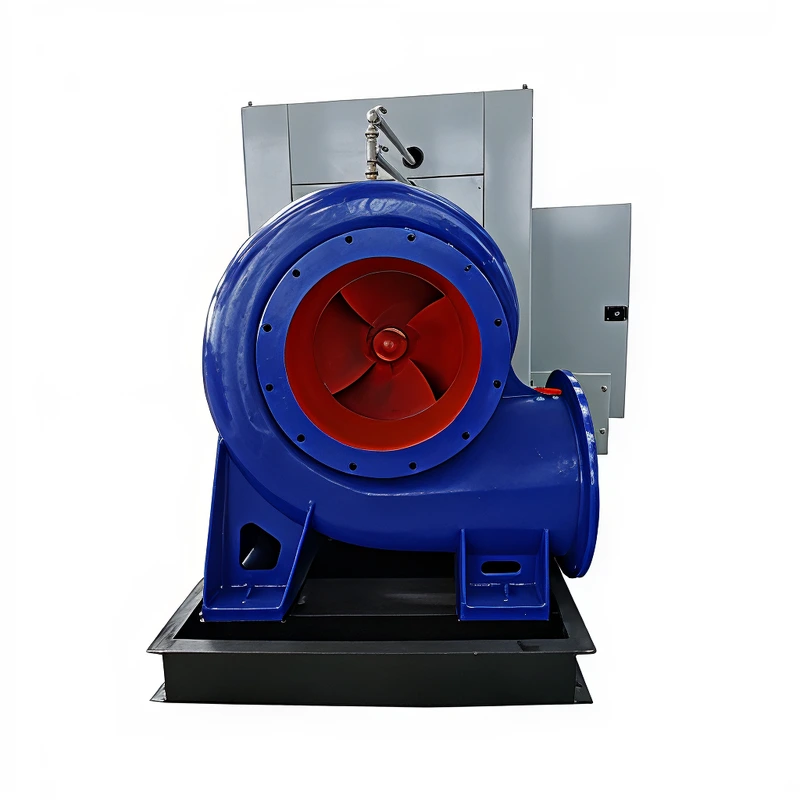

HW Mixed Flow Pump single-stage for Large Flow Low Head
5.0
Flow:
5.4m³/h-1510m³/h
Outlet diameter:
80mm-800mm
Diameter:
Φ50-Φ350 mm
Head:
5m-125m
Power:
0.55kw-250kw
Material:
Cast iron and SS304, SS316, SS316L
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Overview
HW Mixed Flow Pump is a horizontal, single-stage, single-suction volute-type mixed-flow pump. It is used for conveying clean water or other liquids with physical and chemical properties very similar to water.
The HW Mixed Flow Pump is characterized by its horizontal, single-stage, single-suction volute pump design, which is simple in structure and easy to install, use, disassemble, and maintain.
product Parameters
| Type | Flow Q | Head Hm | Speedn r/min | Power | ||
| 1/s | m³/h | Shaft power kW | Motor Power kW | |||
| 150HW-5 | 38 50 60 |
137 180 216 |
6.1 5.0 3.7 |
1450 | 3.03 2.99 2.94 |
4 |
| 150HW-8 | 38 50 60 |
137 180 216 |
8.7 8.0 6.8 |
1450 | 4.78 | 5.5 |
| 150HW-12 | 38 50 60 |
137 180 216 |
15.3 12.5 9.7 |
2900 | 7.60 7.47 7.71 |
11 |
| 200HW-5 | 100 | 360 | 5.0 | 1450 | 6.01 | 7.5 |
| 200HW-8 | 75 100 120 |
270 360 432 |
9.6 8.0 6.0 |
1450 | 9.29 9.39 9.41 |
11 |
| 200HW-12 | 75 100 120 |
270 360 430 |
13.5 12.5 10.8 |
1450 | 14.68 | 18.5 |
| 250HW-5 | 150 | 540 | 5.0 | 1180 | 8.97 | 11 |
| 250HW-8 | 93 123 148 |
335 444 533 |
6.5 5.4 4.1 |
970 | 7.67 7.78 7.74 |
11 |
| 113 150 180 |
407 540 648 |
9.6 8.0 6.0 |
1180 | 13.81 14.01 13.93 |
18.5 | |
| 139 184 221 |
500 664 796 |
14.5 12.1 9.1 |
1450 | 25.6 26.0 25.9 |
30 | |
| 250HW-12 | 113 150 180 |
407 540 648 |
13.5 12.5 10.8 |
1180 | 21.88 | 30 |
| 300HW-5 | 220 | 792 | 5.0 | 970 | 12.99 | 15 |
| 300HW-8 | 165 220 264 |
594 792 950 |
9.6 8.0 6.0 |
970 | 19.90 20.30 20.10 |
22 |
| 300HW-8A | 141 161 188 |
507 581 678 |
4.4 3.9 2.8 |
730 | 7.56 7.48 6.75 |
11 |
| 189 217 253 |
680 780 910 |
8.0 7.0 5.0 |
980 | 18.44 18.08 16.22 |
22 | |
| 251 288 335 |
902 1035 1207 |
14.1 12.3 8.8 |
1300 | 43.16 42.17 37.79 |
55 | |
| 300HW-12 | 165 220 264 |
594 792 950 |
13.5 12.5 10.8 |
970 | 31.72 | 37 |
| 100HW-8 | 19 25 27 |
70 89 98 |
10 8 7 |
2900 | 2.38 2.42 2.42 |
3.5/3 |
| 150HW-6 | 39 50 56 |
140 180 200 |
6.6 6.0 5.0 |
1450 | 3.36 3.59 3.52 |
7/5.5 |
| 49 62 69 |
174 223 248 |
10.1 9.2 7.7 |
1800 | 6.46 7.07 6.72 |
12/7.5 | |
| 200HW-10 | 83 100 125 |
300 360 450 |
8.0 7.0 5.1 |
1200 | 8.45 8.22 8.12 |
15/11 |
| 100 125 150 |
360 450 540 |
12.0 10.0 7.0 |
1450 | 15.27 14.68 14.32 |
30/18.5 | |
| 111 139 167 |
400 500 600 |
14.5 12.5 9.5 |
1600 | 20.49 19.91 20.20 |
40/30 | |
| 250HW-7 | 111 125 139 |
400 450 500 |
8.0 7.0 6.3 |
980 | 10.75 10.22 11.87 |
20/15 |
| 250HW-11 | 111 125 139 |
400 450 500 |
5.5 4.8 4.0 |
980 | 7.22 7.00 6.81 |
15/11 |
| 153 180 200 |
550 650 720 |
13.2 11.6 9.8 |
1450 | 23.85 24.37 24.02 |
40/30 | |
| 178 200 222 |
640 720 800 |
15.5 14.3 11.8 |
1600 | 32.59 33.38 32.11 |
60/37 | |
| 350HW-8 | 186 207 228 |
670 745 819 |
5.2 4.4 3.7 |
730 | 11.16 10.44 10.15 |
20/15 |
| 250 278 306 |
900 1000 1100 |
9.4 8.0 6.7 |
980 | 27.10 25.50 24.66 |
40/30 | |
| 400HW-7 | 300 350 380 |
1080 1260 1368 |
7.8 6.8 6.2 |
730 | 27.31 27.13 27.50 |
40/30 |
| 403 470 510 |
1450 1692 1836 |
14.1 12.3 11.2 |
980 | 66.32 65.90 66.67 |
100/75 | |
| 400HW-10 | 305 389 478 |
1098 1400 1720 |
11.5 9.94 7.55 |
730 | 41.5 44.3 42.4 |
66/55 |
| 409 522 641 |
1474 1880 2309 |
20.7 18.0 13.6 |
980 | 100.1 107.1 102.4 |
165/110 | |
| 500HW-6 | 469 550 606 |
1690 1980 2180 |
7.6 6.2 5.3 |
580 | 41.9 38.4 39.1 |
60/55 |
| 591 692 762 |
2127 2492 2744 |
12.0 9.8 8.4 |
730 | 83.4 76.4 78.1 |
120/95 | |
| 600HW-7 | 880 | 3168 | 7 | 580 | 71.5 | 110/80 |
| 650HW-5 | 736 920 1000 |
2650 3312 3600 |
7.15 5.1 4.0 |
485 | 60.0 54.1 49.6 |
90/75 |
| 896 1120 1216 |
3224 4032 4379 |
10.58 7.55 5.92 |
590 | 108.1 97.5 89.3 |
150/115 | |
| 650HW-7 | 850 944 1100 |
3060 3400 3960 |
7.4 6.5 5.0 |
450 | 72.5 68.4 63.4 |
120/90 |
| 915 1017 1185 |
3295 3663 4244 |
8.6 7.6 5.9 |
485 | 90.8 86.1 80.6 |
135/100 | |
| 1115 1238 1442 |
4014 4457 5193 |
12.7 11.18 8.59 |
590 | 163.3 154.2 142.9 |
220/180 | |
| 650HW-10 | 889 1111 1389 |
3200 4000 5000 |
15.8 14.0 10.4 |
590 | 170.0 173.3 166.6 |
250/180 |
| 738 923 1154 |
2658 3322 4153 |
10.9 9.7 7.2 |
490 | 97.4 99.7 95.8 |
150/115 | |
| 800HW-10 | 1329 1661 1993 |
4784 5980 7176 |
14.8 12.2 8.6 |
490 | 227 225 210 |
310/250 |
| 800HW-12 | 1750 2000 2330 |
6300 7200 8388 |
14 12.2 8.9 |
490 | 279 273 237 |
420/315 |
| 800HW-16 | 1600 2000 2400 |
5760 7200 8640 |
21.5 17.7 12.5 |
590 | 397.0 394.6 367.0 |
550/450 |
Application
Irrigation and Agriculture
Urban Drainage
Water Supply and Drainage
Other Industrial Application
Water Treatment Plant
Industrial Wastewater
