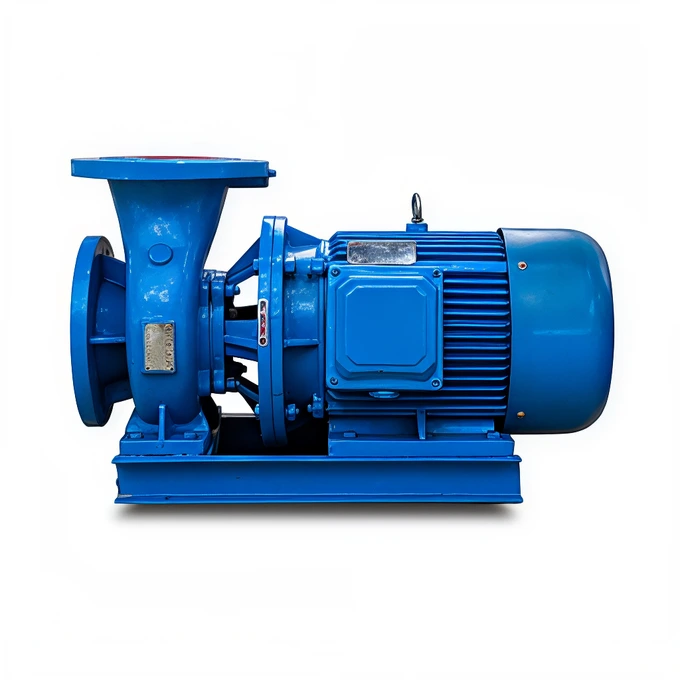

Horizontal In-Line Centrifugal Pump with international standard
Product Introduction
The Horizontal In-Line Centrifugal Pump is designed for efficient liquid transfer and circulation within pipeline systems. Unlike vertical in-line pumps, this pump features a horizontal shaft structure, offering easier maintenance and better adaptability for certain installation environments.
Horizontal In-Line Centrifugal Pump adopts the virtue of IS centrifugal pumps’ performance parameters and vertical pump structure, strict accordance with international standard ISO and the newest national standards designs successfully the efficient energy-saving products.
Key Features
• Optimized hydraulic design for maximum efficiency
• Reduced energy consumption in continuous operation
• Advanced motor cooling system ensures long service life
• Equipped with multiple protection systems
• Supports remote monitoring and control
• Enables intelligent management and fault detection
product Parameters
| Model | Flow | Head | Power |
| SLW | m³/h | m | kw |
| SLW32-200 | 5 | 50 | 3 |
| SLW40-160 | 6.3 | 32 | 2.2 |
| SLW40-200 | 6.3 | 50 | 4 |
| SLW40-250 | 6.3 | 80 | 7.5 |
| SLW50-160 | 12.5 | 32 | 3 |
| SLW50-250 | 12.5 | 80 | 11 |
| SLW65-250 | 25 | 80 | 15 |
| SLW65-315 | 25 | 125 | 30 |
| SLW80-315 | 50 | 125 | 37 |
| SLW80-350 | 50 | 150 | 55 |
| SLW100-125 | 100 | 20 | 11 |
| SLW100-200 | 100 | 50 | 22 |
| SLW100-250 | 100 | 80 | 37 |
| SLW100-350 | 100 | 150 | 90 |
| SLW125-100 | 160 | 12.5 | 11 |
| SLW125-125 | 160 | 20 | 15 |
| SLW125-315 | 160 | 125 | 90 |
| SLW150-125 | 160 | 20 | 15 |
| SLW150-500 | 200 | 80 | 90 |
| SLW200-250 | 200 | 20 | 18.5 |
| SLW200-500 | 200 | 80 | 90 |
| SLW250-250 | 550 | 20 | 45 |
| SLW300-250 | 720 | 20 | 55 |
| SLW300-500 | 720 | 80 | 250 |
| SLW350-250 | 1200 | 20 | 90 |
| SLW350-400 | 1200 | 50 | 250 |
| SLW400-400 | 1080 | 12.5 | 55 |
| SLW500-625 | 1200 | 32 | 160 |
| SLW500-500 | 1200 | 20 | 110 |
Product Features
The horizontal in-line centrifugal pump is built with a practical and durable design:
• Horizontal Shaft Design: Provides stable operation and simplifies inspection and maintenance
• In-Line Pump Casing: Suction and discharge are aligned on the same axis for direct pipeline connection
• Closed Impeller: Ensures efficient fluid transfer with minimal energy loss
• Mechanical Seal: High-quality sealing system prevents leakage and enhances durability
• Motor Coupling: Direct or flexible coupling ensures efficient power transmission
• Bearing Support: High-precision bearings reduce vibration and extend service life
Application
