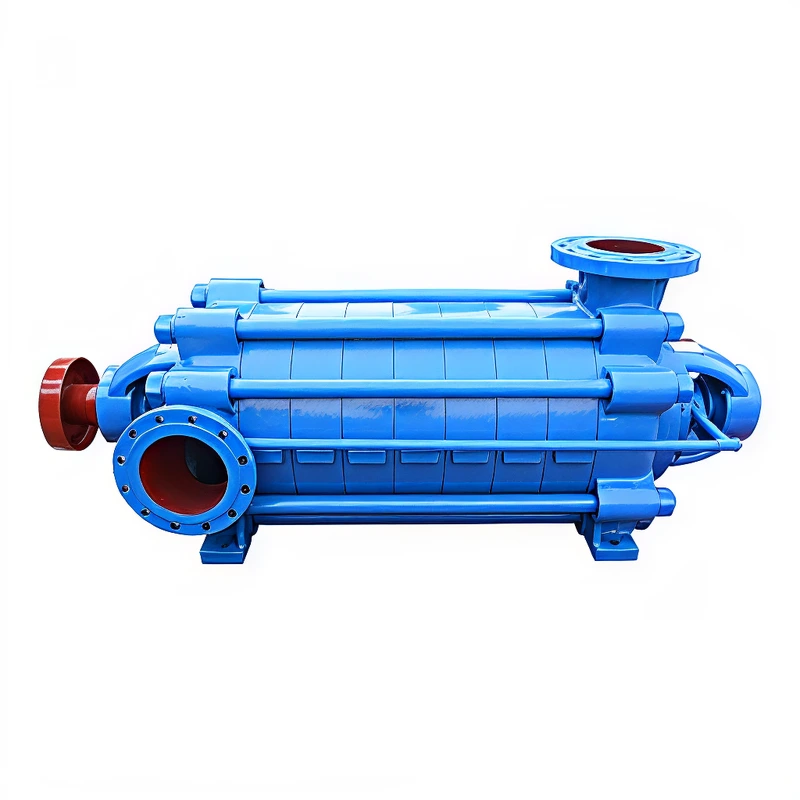

Horizontal Multistage Centrifugal Pump D/DF vertical outlet
Product Introduction
The D series horizontal multistage centrifugal pump is a single-suction, multistage, segmented centrifugal pump designed for transporting clean water or liquids with physical and chemical properties similar to water.
This pump is widely used in mining, industrial plants, and municipal water supply and drainage systems. It is suitable for liquids without solid particles, abrasives, or suspended substances, ensuring stable and efficient operation.
Liquid Temperature: 0°C ~ 80°C (standard D type); Inlet Pressure: Up to 0.6 MPa
For special applications, the pump materials can be customized to match different liquid properties.
Product Structure
The pump adopts a sectional multistage design, making it durable and easy to maintain:
• Horizontal Single-Suction Structure
• Multistage Impeller Arrangement for high-pressure output
• Segmented Casing Design for easy disassembly and maintenance
• Horizontal Inlet & Vertical Outlet (D) or Vertical Inlet & Outlet (DG/DF)
• Shaft with Full Protection Design to prevent corrosion and extend service life
• Seal Options: Packing seal (standard) or mechanical seal
Series Classification & Applications
According to different working conditions, the pump series includes:
• Suitable for clean water or similar liquids without solids
• Temperature: 0°C ~ 80°C
• Structure: Horizontal inlet, vertical outlet
• Applications: municipal water supply, irrigation, industrial water systems
• Suitable for clean water in boiler systems
• Temperature: -20°C ~ 150°C
• Structure: Both inlet and outlet vertical
• Applications: boiler feed water, high-temperature water supply
• Suitable for corrosive liquids
• Temperature: -20°C ~ 150°C
• Material: Stainless steel (304 / 316 / 316L)
• Applications: chemical processing, corrosive fluid transfer
Product Features
product Parameters
| Flow | Head | Power | Inlet Diameter | Outlet Diameter |
| m³/hr | m | kw | mm | mm |
| 6.3 | 75 | 4 | 40 | 40 |
| 7.5 | 98 | 5.5 | 40 | 40 |
| 3.7 | 153 | 7.5 | 40 | 40 |
| 6.3 | 175 | 7.5 | 40 | 40 |
| 7.5 | 196 | 11 | 40 | 40 |
| 3.7 | 280 | 15 | 40 | 40 |
| 6.3 | 300 | 15 | 40 | 40 |
| 12.5 | 75 | 5.5 | 50 | 40 |
| 15 | 92 | 7.5 | 50 | 40 |
| 30 | 110 | 18.5 | 65 | 65 |
| 15 | 204 | 30 | 65 | 65 |
| 25 | 240 | 37 | 65 | 65 |
| 30 | 275 | 45 | 65 | 65 |
| 46 | 90 | 22 | 80 | 65 |
| 55 | 108 | 30 | 80 | 65 |
| 55 | 230 | 75 | 80 | 80 |
| 46 | 400 | 90 | 80 | 80 |
| 30 | 499.5 | 110 | 80 | 80 |
| 100 | 75 | 37 | 100 | 100 |
| 85 | 315 | 132 | 100 | 100 |
| 55 | 459 | 160 | 100 | 100 |
| 155 | 90 | 75 | 150 | 150 |
| 190 | 216 | 185 | 150 | 150 |
| 335 | 190 | 315 | 200 | 200 |
| 335 | 130 | 220 | 250 | 250 |
| 280 | 455 | 630 | 200 | 200 |
Working Principle
The pump operates using a multistage centrifugal mechanism:
• Liquid enters the first-stage impeller through the suction inlet
• The impeller increases fluid velocity
• The diffuser converts velocity into pressure
• The liquid flows through each stage, gradually increasing pressure
This results in high-pressure output, making the pump ideal for long-distance and high-lift applications.
