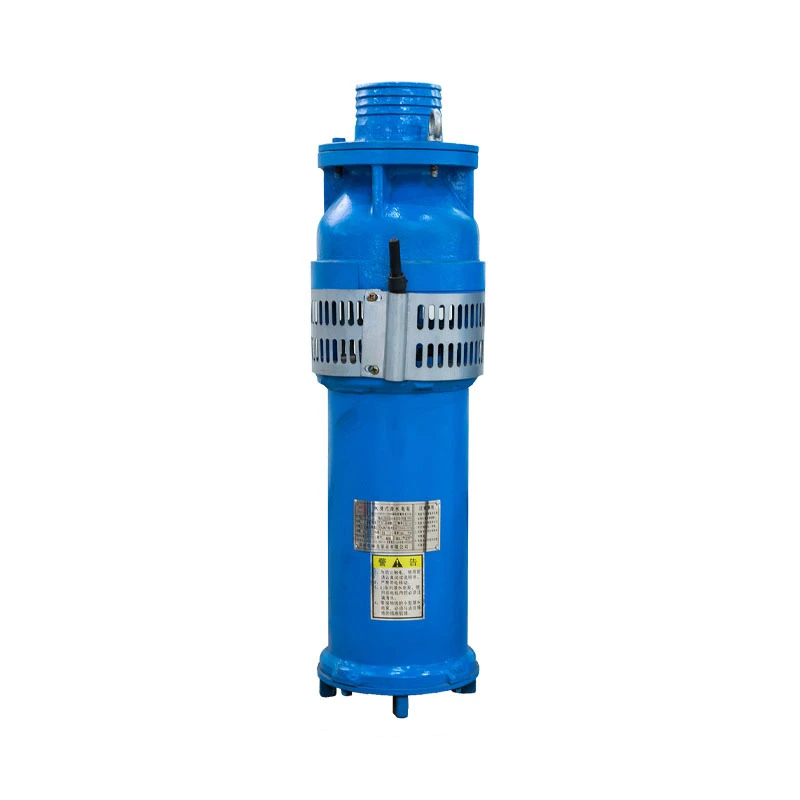

Cast Iron & Stainless Steel Submersible Fountain Pumps
Product Overview
The cast iron & stainless steel submersible fountain pump is specially designed for fountain systems, landscape water features, and decorative water applications. Built with high-quality materials and advanced motor technology, this pump ensures reliable performance, durability, and long service life.
This submersible fountain pump is available in both cast iron and stainless steel (304 / 316 / 316L), making it suitable for different water environments, including clean water and mildly corrosive conditions.
Key Features
product Parameters
| Model | Flow(m3/h) | Head(m) | Power(kw) | Current(A) | Discharge Dia.(mm) |
| QS(P)15-14-1.1 | 15 | 14 | 1.1 | 3.2 | 50 |
| QS(P)40-6-1.1 | 40 | 6 | 1.1 | 3.2 | 80 |
| QS(P)25-9-1.1 | 25 | 9 | 1.1 | 3.2 | 65 |
| QS(P)25-12-1.5 | 25 | 12 | 1.5 | 4.2 | 65 |
| QS(P)40-9-1.5 | 40 | 9 | 1.5 | 4.2 | 80 |
| QS(P)10-40/3-2.2 | 10 | 40 | 2.2 | 5.7 | 50 |
| QS(P)15-26-2.2 | 15 | 26 | 2.2 | 5.7 | 50 |
| QS(P)20-20-2.2 | 20 | 20 | 2.2 | 5.7 | 65 |
| QS(P)25-17-2.2 | 25 | 17 | 2.2 | 5.7 | 65 |
| QS(P)40-12-2.2 | 40 | 12 | 2.2 | 5.7 | 65 |
| QS(P)65-7-2.2 | 65 | 7 | 2.2 | 5.7 | 90 |
| QS(P)15-34/2-3 | 15 | 34 | 3 | 7 | 50 |
| QS(P)10-54/3-3 | 10 | 54 | 3 | 7 | 50 |
| QS(P)25-25-3 | 25 | 25 | 3 | 7 | 65 |
| QS(P)20-30/2-3 | 20 | 30 | 3 | 7 | 65 |
| QS(P)40-16-3 | 40 | 16 | 3 | 7 | 65 |
| QS(P)50-13-3 | 50 | 13 | 3 | 7 | 90 |
| QS(P)80-7-3 | 80 | 7 | 3 | 7 | 90 |
| QS(P)65-10-3 | 65 | 10 | 3 | 7 | 90 |
| QS(P)100-6-3 | 100 | 6 | 3 | 7 | 90 |
| QS(P)10-65/5-4 | 10 | 65 | 4 | 10.2 | 50 |
| QS(P)10-72/4-4 | 10 | 72 | 4 | 10.2 | 50 |
| QS(P)10-81/6-4 | 10 | 81 | 4 | 10.2 | 50 |
| QS(P)15-54/4-4 | 15 | 54 | 4 | 10.2 | 50 |
| QS(P)20-40/2-4 | 20 | 40 | 4 | 10.2 | 65 |
| QS(P)25-30/2-4 | 25 | 30 | 4 | 10.2 | 65 |
| QS(P)30-30/2-4 | 30 | 30 | 4 | 10.2 | 65 |
| QS(P)32-26-4 | 32 | 26 | 4 | 10.2 | 65 |
| QS(P)40-21-4 | 40 | 21 | 4 | 10.2 | 65 |
| QS(P)50-16-4 | 50 | 16 | 4 | 10.2 | 90 |
| QS(P)65-13-4 | 65 | 13 | 4 | 10.2 | 90 |
| QS(P)65-15-4 | 65 | 15 | 4 | 10.2 | 90 |
| QS(P)80-12-4 | 80 | 12 | 4 | 10.2 | 90 |
| QS(P)100-9-4 | 100 | 9 | 4 | 10.2 | 90 |
| QS(P)10-95/7-5.5 | 10 | 95 | 5.5 | 13.4 | 50 |
| QS(P)10-108/8-5.5 | 10 | 108 | 5.5 | 13.4 | 50 |
| QS(P)15-65/5-5.5 | 15 | 65 | 5.5 | 13.4 | 50 |
| QS(P)20-54/3-5.5 | 20 | 54 | 5.5 | 13.4 | 65 |
| QS(P)25-40/3-5.5 | 25 | 40 | 5.5 | 13.4 | 65 |
| QS(P)30-40/3-5.5 | 30 | 40 | 5.5 | 13.4 | 90 |
| QS(P)40-30/2-5.5 | 40 | 30 | 5.5 | 13.4 | 90 |
| QS(P)40-28-5.5 | 40 | 28 | 5.5 | 13.4 | 90 |
| QS(P)50-26-5.5 | 50 | 26 | 5.5 | 13.4 | 90 |
| QS(P)65-20-5.5 | 65 | 20 | 5.5 | 13.4 | 90 |
| QS(P)65-18-5.5 | 65 | 18 | 5.5 | 13.4 | 90 |
| QS(P)80-15-5.5 | 80 | 15 | 5.5 | 13.4 | 90 |
| QS(P)100-12-5.5 | 100 | 12 | 5.5 | 13.4 | 125 |
| QS(P)120-10-5.5 | 120 | 10 | 5.5 | 13.4 | 125 |
| QS(P)220-5-5.5 | 220 | 5 | 5.5 | 13.4 | 150 |
| QS(P)10-121/9-7.5 | 10 | 121 | 7.5 | 18.6 | 50 |
| QS(P)15-80/6-7.5 | 15 | 80 | 7.5 | 18.6 | 50 |
| QS(P)20-65/5-7.5 | 20 | 65 | 7.5 | 18.6 | 65 |
| QS(P)20-75/4-7.5 | 20 | 75 | 7.5 | 18.6 | 65 |
| QS(P)25-65/5-7.5 | 25 | 65 | 7.5 | 18.6 | 65 |
| QS(P)30-50/3-7.5 | 30 | 50 | 7.5 | 18.6 | 65 |
| QS(P)30-54/3-7.5 | 30 | 54 | 7.5 | 18.6 | 65 |
| QS(P)32-48/4-7.5 | 32 | 48 | 7.5 | 18.6 | 65 |
| QS(P)40-40/2-7.5 | 40 | 40 | 7.5 | 18.6 | 90 |
| QS(P)50-30/2-7.5 | 50 | 36 | 7.5 | 18.6 | 90 |
| QS(P)50-36/3-7.5 | 50 | 36 | 7.5 | 18.6 | 90 |
| QS(P)65-25-7.5 | 65 | 25 | 7.5 | 18.6 | 90 |
| QS(P)80-22/2-7.5 | 80 | 22 | 7.5 | 18.6 | 90 |
| QS(P)100-15-7.5 | 100 | 15 | 7.5 | 18.6 | 125 |
| QS(P)100-17-7.5 | 100 | 17 | 7.5 | 18.6 | 125 |
| QS(P)250-8-7.5 | 250 | 8 | 7.5 | 18.6 | 150 |
Structure
The submersible fountain pump consists of two main components:
• Centrifugal Pump Unit
Available in single-stage or multi-stage configurations, providing stable flow and pressure for various fountain applications.
• Three-Phase Asynchronous Motor
Equipped with a high-efficiency motor using 100% copper wire, ensuring stable operation, high performance, and low energy consumption.
Advantages
• High-quality material options (cast iron & stainless steel)
• Strong corrosion resistance
• Energy-efficient motor design
• Stable and continuous operation
• Customizable configurations available
As a professional manufacturer, we provide reliable submersible fountain pump solutions for global customers.
